HTD14M型同步带轮设计规格标准表

Tags:HTD14M型同步带轮设计,同步带轮设计人气:发布: 2014年10月30日
HTD14M型同步带轮一般由钢,铝合金,铸铁,黄铜,等材料制造。内孔有圆孔,D形孔,锥形孔等形式。表面处理有本色氧化,发黑,镀锌,镀彩锌,高频淬火等处理。精度等级依客户要求而定。

14M型标准皮带宽55mm

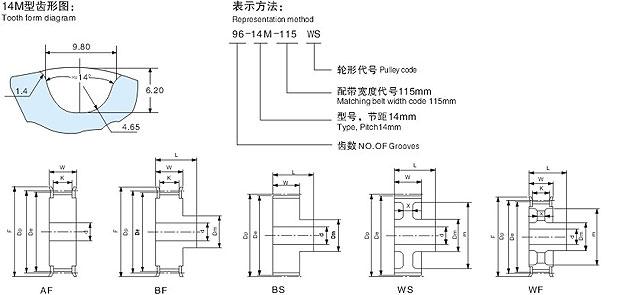

规格 齿数 形状 节径Dp 外径De W L 1K X 轮毂直径Dm 内孔d 透孔外径m 档边外径F 档边内径 档边型号
28-14M 28 A/B 124.78 121.98 66 91 60 - 92 25 - 137 106 F-25137106
29-14M 29 A/B 129.23 126.44 66 91 60 - 94 25 - 141 111 F-25141111
30-14M 30 A/B 133.69 130.90 66 91 60 - 96 25 - 146 115 F-25146115
32-14M 32 A/B 142.60 139.81 66 91 60 - 100 25 - 155 123 F-25155123
34-14M 34 A/B 151.52 148.72 66 91 60 - 104 25 - 164 132 F-25164132
36-14M 36 A/B 160.43 157.63 66 91 60 - 108 30 - 173 140 F-25173140
38-14M 38 A/B 169.34 166.55 66 91 60 - 112 30 - 182 149 F-25182149
40-14M 40 B/W 178.25 175.46 66 91 60 16 114 30 136 190 158 F-25190158
42-14M 42 B/W 187.17 184.37 66 91 60 16 116 30 145 200 167 F-25200167
44-14M 44 B/W 196.08 193.28 66 91 60 16 118 30 154 208 176 F-25208176
46-14M 46 B/W 204.99 202.20 66 91 60 16 118 30 163 217 185 F-25217185
48-14M 48 B/W 213.90 211.11 66 91 60 16 120 30 172 226 194 F-25116194
56-14M 56 B/W 249.55 246.76 66 91 60 16 124 40 207 262 229 F-25262229
60-14M 60 B/W 267.38 364.59 66 91 60 16 128 40 225 280 247 F-25280247
64-14M 64 B/W 285.21 282.41 66 91 60 16 130 40 243 297 265 F-25297265
72-14M 72 B/W 320.86 318.06 66 91 60 16 134 50 279 333 301 F-25333301
80-14M 80 B/W 356.51 353.71 66 91 60 16 138 50 314 369 336 F-25369336
84-14M 84 B/W 374.33 371.54 66 91 60 16 140 50 332 387 354 F-25387354
90-14M 90 B/W 401.07 398.28 66 91 60 16 142 50 359 413 381 F-25413381
96-14M 96 B/W 427.81 425.01 66 91 60 16 146 50 385 440 407 F-25440407
112-14M 112 B/W 499.11 496.32 66 91 60 16 154 50 457 - - -
144-14M 144 B/W 641.71 638.92 66 91 60 16 170 60 600 - - -
14M型标准皮带宽85mm
规格 齿数 形状 节径Dp 外径De W L 1K X 轮毂直径Dm 内孔d 透孔外径m 档边外径F 档边内径 档边型号
28-14M 28 A/B 124.78 121.98 97 122 90 - 92 25 - 137 106 F-25137106
29-14M 29 A/B 129.23 126.44 97 122 90 - 94 25 - 141 111 F-25141111
30-14M 30 A/B 133.69 130.90 97 122 90 - 96 25 - 146 115 F-25146115
32-14M 32 A/B 142.60 139.81 97 122 90 - 100 25 - 155 123 F-25155123
34-14M 34 A/B 151.52 148.72 97 122 90 - 104 25 - 164 132 F-25164132
36-14M 36 A/B 160.43 157.63 97 122 90 - 108 30 - 173 140 F-25173140
38-14M 38 A/B 169.34 166.55 97 122 90 - 112 30 - 182 149 F-25182149
40-14M 40 B/W 178.25 175.46 97 122 90 19 114 30 136 190 158 F-25190158
42-14M 42 B/W 187.17 184.37 97 122 90 19 116 30 145 200 167 F-25200167
44-14M 44 B/W 196.08 193.28 97 122 90 19 118 30 154 208 176 F-25208176
46-14M 46 B/W 204.99 202.20 97 122 90 19 118 30 163 217 185 F-25217185
48-14M 48 B/W 213.90 211.11 97 122 90 19 120 30 172 226 194 F-25116194
56-14M 56 B/W 249.55 246.76 97 122 90 19 124 40 207 262 229 F-25262229
60-14M 60 B/W 267.38 364.59 97 122 90 19 128 40 225 280 247 F-25280247
64-14M 64 B/W 285.21 282.41 97 122 90 19 130 40 243 297 265 F-25297265
72-14M 72 B/W 320.86 318.06 97 122 90 19 134 50 279 333 301 F-25333301
80-14M 80 B/W 356.51 353.71 97 122 90 19 138 50 314 369 336 F-25369336
84-14M 84 B/W 374.33 371.54 97 122 90 19 140 50 332 387 354 F-25387354
90-14M 90 B/W 401.07 398.28 97 122 90 19 142 50 359 413 381 F-25413381
96-14M 96 B/W 427.81 425.01 97 122 90 19 146 50 385 440 407 F-25440407
112-14M 112 B/W 499.11 496.32 97 122 90 19 154 50 457 - - -
144-14M 144 B/W 641.71 638.92 97 122 90 19 170 60 600 - - -
14M型标准皮带宽100mm
规格 齿数 形状 节径Dp 外径De W L 1K X 轮毂直径Dm 内孔d 透孔外径m 档边外径F 档边内径 档边型号
28-14M 28 A/B 124.78 121.98 112 137 105 - 92 25 - 137 106 F-25137106
29-14M 29 A/B 129.23 126.44 112 137 105 - 94 25 - 141 111 F-25141111
30-14M 30 A/B 133.69 130.90 112 137 105 - 96 25 - 146 115 F-25146115
32-14M 32 A/B 142.60 139.81 112 137 105 - 100 25 - 155 123 F-25155123
34-14M 34 A/B 151.52 148.72 112 137 105 - 104 25 - 164 132 F-25164132
36-14M 36 A/B 160.43 157.63 112 137 105 - 108 30 - 173 140 F-25173140
38-14M 38 A/B 169.34 166.55 112 137 105 - 112 30 - 182 149 F-25182149
40-14M 40 B/W 178.25 175.46 112 137 105 22 114 30 136 190 158 F-25190158
42-14M 42 B/W 187.17 184.37 112 137 105 22 116 30 145 200 167 F-25200167
44-14M 44 B/W 196.08 193.28 112 137 105 22 118 30 154 208 176 F-25208176
46-14M 46 B/W 204.99 202.20 112 137 105 22 118 30 163 217 185 F-25217185
48-14M 48 B/W 213.90 211.11 112 137 105 22 120 30 172 226 194 F-25116194
56-14M 56 B/W 249.55 246.76 112 137 105 22 124 40 207 262 229 F-25262229
60-14M 60 B/W 267.38 364.59 112 137 105 22 128 40 225 280 247 F-25280247
64-14M 64 B/W 285.21 282.41 112 137 105 22 130 40 243 297 265 F-25297265
72-14M 72 B/W 320.86 318.06 112 137 105 22 134 50 279 333 301 F-25333301
80-14M 80 B/W 356.51 353.71 112 137 105 22 138 50 314 369 336 F-25369336
84-14M 84 B/W 374.33 371.54 112 137 105 22 140 50 332 387 354 F-25387354
90-14M 90 B/W 401.07 398.28 112 137 105 22 142 50 359 413 381 F-25413381
96-14M 96 B/W 427.81 425.01 112 137 105 22 146 50 385 440 407 F-25440407
112-14M 112 B/W 499.11 496.32 112 137 105 22 154 50 457 - - -
144-14M 144 B/W 641.71 638.92 112 137 105 22 170 60 600 - - -
14M型标准皮带宽115mm
规格 齿数 形状 节径Dp 外径De W L 1K X 轮毂直径Dm 内孔d 透孔外径m 档边外径F 档边内径 档边型号
28-14M 28 A/B 124.78 121.98 128 153 120 - 92 25 - 137 106 F-25137106
29-14M 29 A/B 129.23 126.44 128 153 120 - 94 25 - 141 111 F-25141111
30-14M 30 A/B 133.69 130.90 128 153 120 - 96 25 - 146 115 F-25146115
32-14M 32 A/B 142.60 139.81 128 153 120 - 100 25 - 155 123 F-25155123
34-14M 34 A/B 151.52 148.72 128 153 120 - 104 25 - 164 132 F-25164132
36-14M 36 A/B 160.43 157.63 128 153 120 - 108 30 - 173 140 F-25173140
38-14M 38 A/B 169.34 166.55 128 153 120 - 112 30 - 182 149 F-25182149
40-14M 40 B/W 178.25 175.46 128 153 120 26 114 30 136 190 158 F-25190158
42-14M 42 B/W 187.17 184.37 128 153 120 26 116 30 145 200 167 F-25200167
44-14M 44 B/W 196.08 193.28 128 153 120 26 118 30 154 208 176 F-25208176
46-14M 46 B/W 204.99 202.20 128 153 120 26 118 30 163 217 185 F-25217185
48-14M 48 B/W 213.90 211.11 128 153 120 26 120 30 172 226 194 F-25116194
56-14M 56 B/W 249.55 246.76 128 153 120 26 124 40 207 262 229 F-25262229
60-14M 60 B/W 267.38 364.59 128 153 120 26 128 40 225 280 247 F-25280247
64-14M 64 B/W 285.21 282.41 128 153 120 26 130 40 243 297 265 F-25297265
72-14M 72 B/W 320.86 318.06 128 153 120 26 134 50 279 333 301 F-25333301
80-14M 80 B/W 356.51 353.71 128 153 120 26 138 50 314 369 336 F-25369336
84-14M 84 B/W 374.33 371.54 128 153 120 26 140 50 332 387 354 F-25387354
90-14M 90 B/W 401.07 398.28 128 153 120 26 142 50 359 413 381 F-25413381
96-14M 96 B/W 427.81 425.01 128 153 120 26 146 50 385 440 407 F-25440407
112-14M 112 B/W 499.11 496.32 128 153 120 26 154 50 457 - - -
144-14M 144 B/W 641.71 638.92 128 153 120 26 170 60 600 - - -
以上是HTD14M同步带轮设计标准参数,具体型号要求请联系网站客服 0574-63782991 13968203611 杨小姐
